Standard features
Wide embroidery area of 1200mm achieves various kinds of works.
The largest embroidery field in the line up of drop table models up to 1200mm in V direction.
Suitable for larger and wider materials such as banners and flags.
Its embroidery field is 360 x 1200.
ITS MAIN FUNCTIONS:
- New thread tensioning system ensures better tensioning and faster threading.
- New trimming system with a narrow cylinder arm allows more room to embroider shirt pockets, socks and smaller items.
- Name Drop: Separates names in a multiple name design for view and sewing purposes.
- Frame Centering Function
- Frame Limit Function: Able to restrict machine operation when a design does not fit to the frame or when there is a risk of a needle bar hitting the frame.
- Shortcuts: Customize most-used icons to save time.
- LAN Connector Standard, 1 USB port.
- 70 million stitch capacity, 100 memory locations.
its main assetS:
++ Wide embroidery area of 1200mm achieves various kinds of works
its main FEATURES:
| MODEL | Embroidery Area (mm) |
Cap Frame (mm) |
Number of Needles |
Stitch Length (mm) |
Speed (rpm) |
| BEKT-S1501CBIII | 360×1200/1200 | 86×360 | 15 | 0.1 ~ 12.7 | (Tubular frame) 200 ~ 1000 (Cap frame) 200 ~ 1000 |
| MODEL | Power Supply (V) |
Power Consumption (kw) |

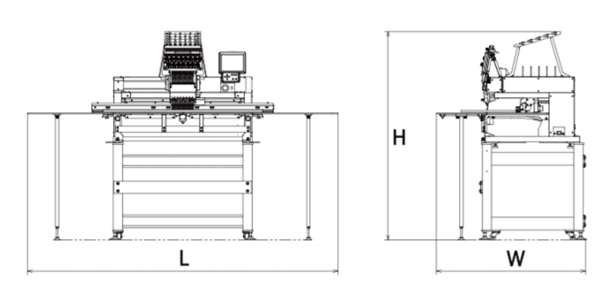

Dimensions (mm) | ||
| L | W | H | |||
| BEKT-S1501CBIII | 1Ø 100 ~ 240 |
0.225 | 2490 | 1195 | 1669 |
options:
-
- Wide Cap Frame
-
- Semi-Wide Cap Frame
-
- Pocket Frames
-
- Frames for Finished Products
-
- Sequin Device
-
- Loop & Cord Device
-
- Bobbin Winder (BN-IV)
