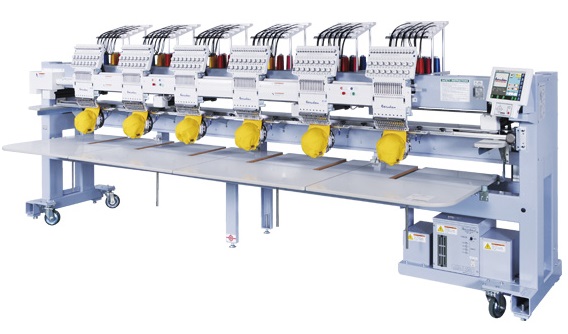

Standard features
Perfect model for a variety of order sizes.
Compact, Fast & Reliable.
ITS MAIN FUNCTIONS:
- Touch screen (10.4 inch, Resolution 800×600).
- Ability to register shortcuts into multiple groups.
- Customizeable display.
- LAN Connector Standard, 1×COM Port & 2×USB Ports, 1×Remote Controller Connector.
- 70 million stitch capacity, 100 memory locations.
ITS MAIN ASSET:
++ Embroidery on tubular and caps articles.
ITS MAIN FEATURES:
| MODEL | Embroidery Area (mm) | Number of Needles | Stitch Length (mm) | Speed (rpm) | |
| Tubular frame | Cap frame | ||||
| BEKY-S1502CII | 450×520/520 | 15 | 0.1 ~ 12.7 | 200 ~ 1100 |
200 ~ 1000 |
| BEKY-S1504CII | 450×380/380 | ||||
| 450×520/520 | |||||
| BEKY-S1506CII | 450×380/380 | ||||
| 450×520/520 | |||||
| BEKY-S1508CII | 450×380/380 | ||||
| 450×520/520 | 200 ~ 1000 | ||||
| MODEL | Embroidery Area (mm) | Power Supply (V) |
Power Consumption (kw) | Needle Distance (mm) | Continuous Design (mm) | Dimensions (mm) | ||
| L | W | H | ||||||
| BEKY-S1502CII | 450×520/520 | 1Ø 100 ~ 240 3Ø 200 ~ 415 |
0.35 | 520 | 450×1040 | 2045 | 1245 | 1690 |
| BEKY-S1504CII | 450×380/380 | 380 | 450×1520 | 2385 | ||||
| 450×520/520 | 520 | 450×2080 | 3085 | |||||
| BEKY-S1506CII | 450×380/380 | 0.40 | 380 | 450×2280 | 3145 | |||
| 450×520/520 | 520 | 450×3120 | 4125 | |||||
| BEKY-S1508CII | 450×380/380 | 380 | 450×3040 | 3905 | ||||
| 450×520/520 | 520 | 450×4160 | 5265 | |||||
Some examples of embroideries:
* Features and specifications are subject to change at any time without notice.
