Standard features
Smaller diameter cylinder arm allows for sewing deeper into confined areas and higher on caps.
Open chassis bridge style provides more room for large duffle bags, tote bags and heavy jackets.
Its embroidery field is 360 x 500.
ITS MAIN FUNCTIONS:
- New thread tensioning system ensures better tensioning and faster threading.
- New trimming system with a narrow cylinder arm allows more room to embroider shirt pockets, socks and smaller items.
- Name Drop: Separates names in a multiple name design for view and sewing purposes.
- Frame Centering Function
- Frame Limit Function: Able to restrict machine operation when a design does not fit to the frame or when there is a risk of a needle bar hitting the frame.
- Shortcuts: Customize most-used icons to save time.
- LAN Connector Standard, 2 USB ports.
- 70 million stitch capacity, 100 memory locations.
its main asset:
++ Possibility to add a sequin system.
its main FEATURES:
| MODEL | Embroidery Area (mm) |
Cap Frame (mm) |
Number of Needles |
Stitch Length (mm) |
Speed (rpm) |
| BEKT-S1501CBIII | 360×500 | 79×360 | 15 | 0.1 ~ 12.7 | (Tubular frame) 200 ~ 1300 (Cap frame) 200 ~ 1000 |
| MODEL | Power Supply (V) |
Power Consumption (kw) |

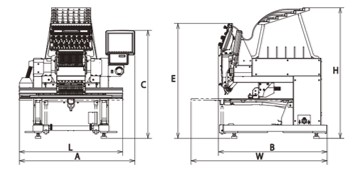

Dimensions (mm) | Weight (kg) |
||||||
| L | W | H | A | B | C | E | ||||
| BEKT-S1501CBIII | 1Ø 100 ~ 240 |
0.225 | 755 | 995 | 935 | 845 | 795 | 770 | 820 | 96 |
options:
-
- Steel Stand
-
- Pocket Frames
-
- Frames for Finished Products
-
- Wide Cap Frame
-
- Detachable Table
-
- Bobbin Winder
Some examples of embroideries:
* Features and specifications are subject to change at any time without notice.
